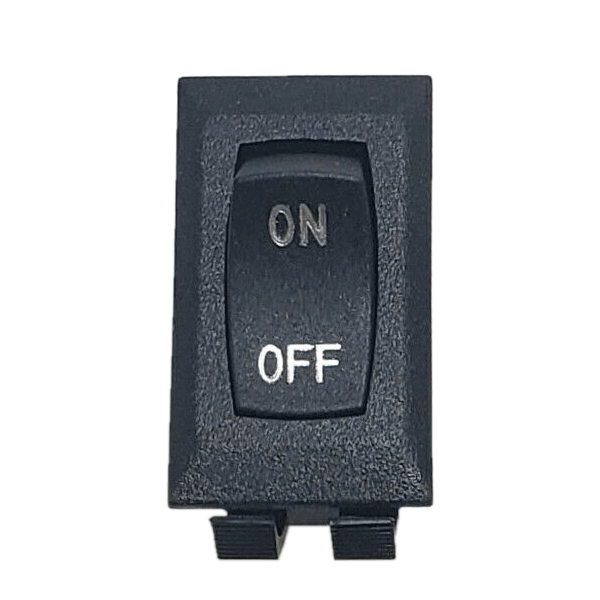

The Creative Products Group Labeled ON/OFF Switch Single Pole Single Throw in Black, is designed specifically for RVs to provide reliable control and indication of electrical circuits. A Single Pole Single Throw (SPST) switch is a switch that only has a single input and can connect only to one output. This means it only has one input terminal and only one output terminal.

Featuring self-cleaning contacts and heavy-duty switching capabilities, this switch ensures long-lasting performance and dependable operation, even in demanding environments. The light, yet positive detent action provides tactile feedback, making it visually easy to operate and tease-proof.

In compliance with RoHS regulations, this ON/OFF switch meets industry standards for safety and environmental responsibility.

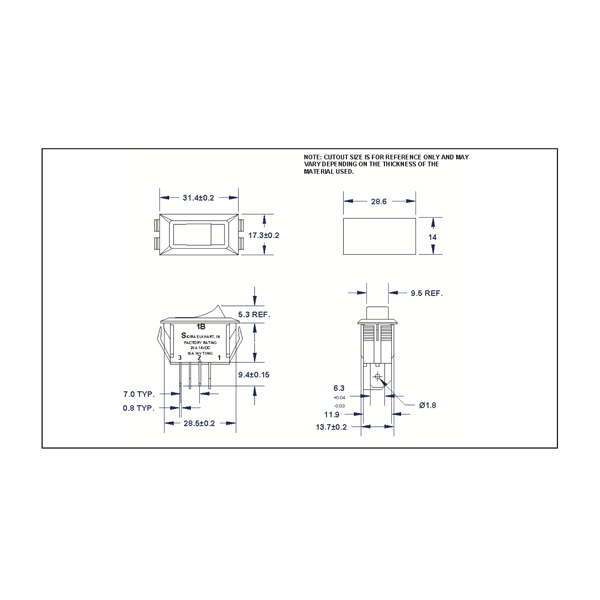

Mounting:

• No hardware or tools needed. Self locks in to proper panel cutout 14.00mm(.550") x 28.6mm(1.25")
• Acceptable panel thickness range is from .64mm (.025") to 4.57mm (.180").

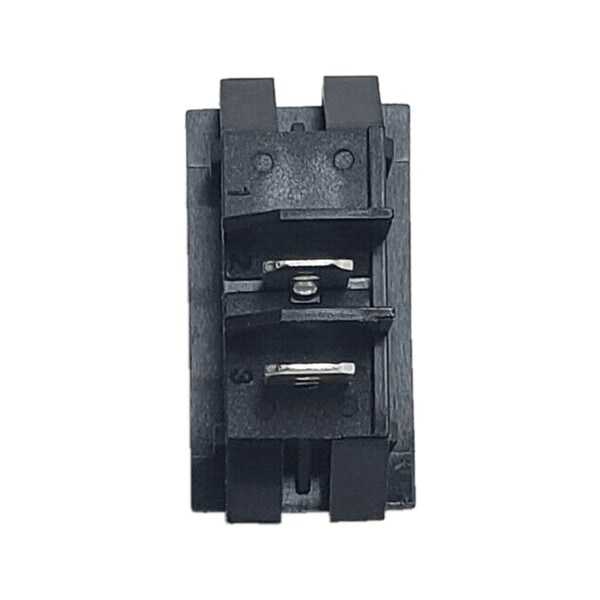

• Standard termination is solderless 6.35mm (0.250") wide x 0.81mm (0.032")

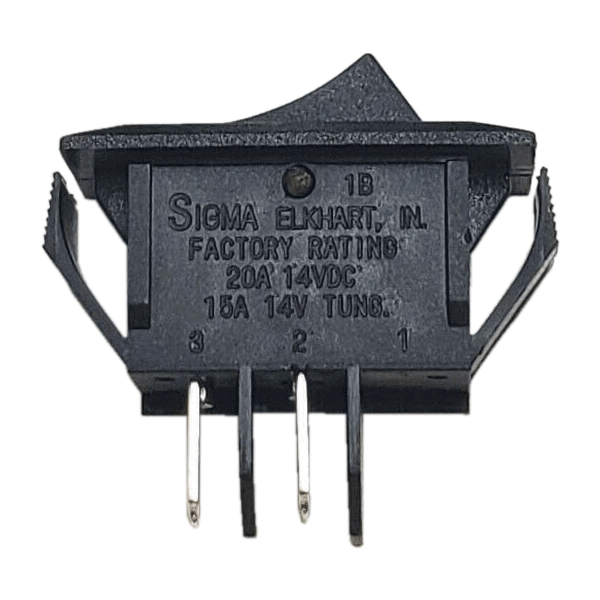

Electrical Rating:

• 20A - 14VDC
• 15A - 14V Tung.
