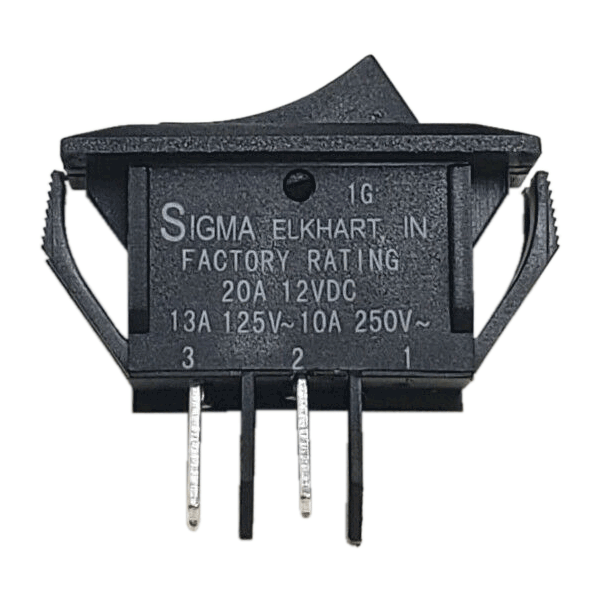

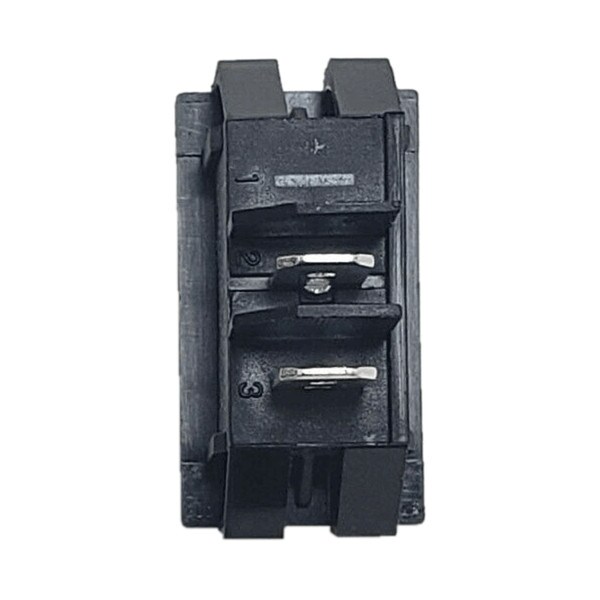

The Creative Products Group Black Switch Single Pole Single Throw is a reliable and durable switch designed to meet your RV’s electrical needs with ease. A Single Pole Single Throw (SPST) switch is a switch that only has a single input and can connect only to one output. This means it only has one input terminal and only one output terminal.

UL, CUL, RoHS compliant, guaranteeing adherence to safety and quality standards. Self-cleaning contacts ensure optimal performance and longevity. Heavy-duty switching mechanism for durability and reliability. Fully enclosed active switching elements provide enhanced safety and protection. Switch is Off / Momentary On Function.

Mounting:

• No hardware or tools needed. Self locks in to proper panel cutout 14.00mm(.550") x 28.6mm(1.25")
• Acceptable panel thickness range is from .64mm (.025") to 4.57mm (.180")
• Standard termination is solderless 6.35mm (.250") wide x .81mm (.032") thick

Electrical Rating:

• 20A - 14VDC
• 13A - 125VAC
• 10A - 250VAC
• 15A - 14V Tung
