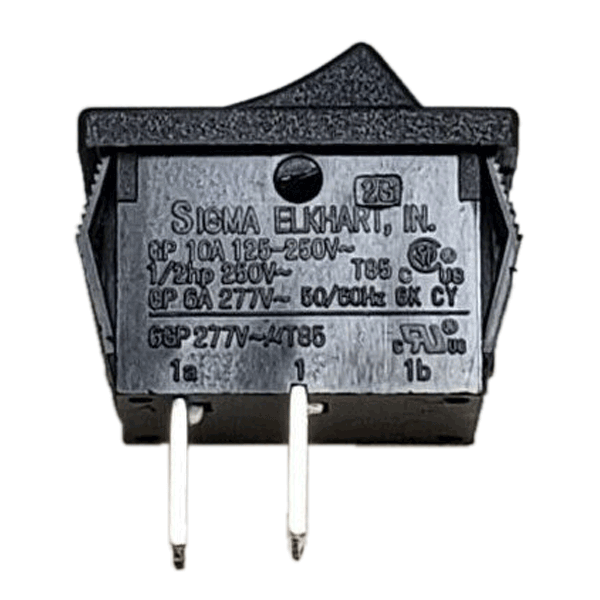

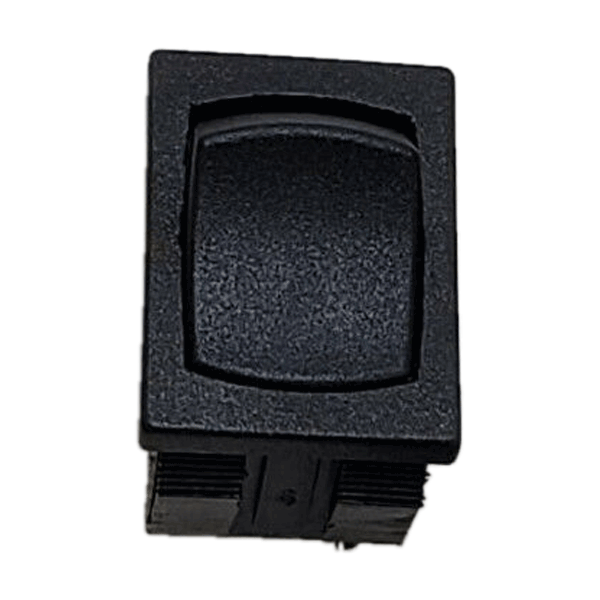

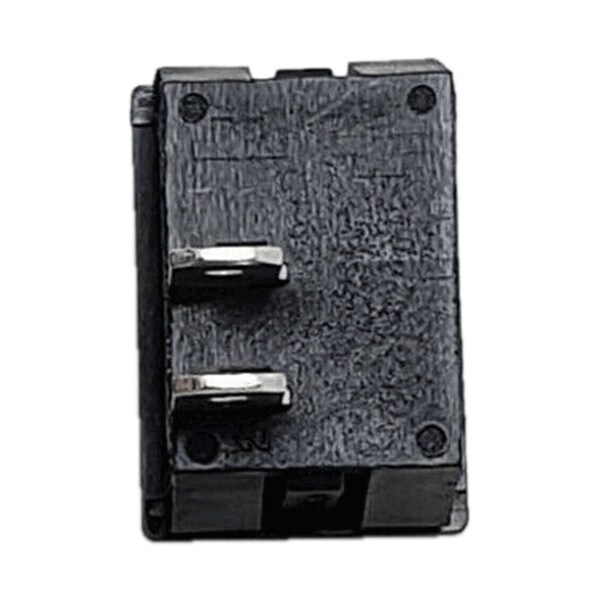

Sigma Switches OFF/Momentary ON Switch Single Pole Single Throw, Black
Details
The Sigma Switches OFF/Momentary ONSwitch in Black, is designed specifically for RVs to provide reliable control and indication of electrical circuits. A Single Pole Single Throw (SPST) switch is a switch that only has a single input and can connect only to one output. This means it only has one input terminal and only one output terminal.
Featuring self-cleaning contacts and heavy-duty switching capabilities, this switch ensures long-lasting performance and dependable operation, even in demanding environments. The light, yet positive detent action provides tactile feedback, making it visually easy to operate and tease-proof.
With approvals from UL, CUL, CSA, and compliance with RoHS regulations, this mini ON/OFF switch meets industry standards for safety and environmental responsibility.
Mounting:
- No hardware or tools needed. Self locks in to proper panel cutout 12.90mm(.508") x 19.20mm(756")
- Acceptable panel thickness range is from .64mm (.025") to 4.57mm (.180").
- Standard termination is solderless 4.75mm (.187") wide x .81mm (.032") thick
Electrical Rating:
- GP 10A - 125VCA
- GP 10A - 250VAC
- GP 6A - 277VCA
- 1/2 HP - 250VAC
- 10A - 14V Tung.
- 20A - 14VDC Peak
