  • Sigma Switches Mini ON/OFF Switch, White

Sigma Switches Mini ON/OFF Switch, White

(0) No Reviews yet
$4.99
SKU: EP-2B56-WHT

This item is IN STOCK

Current Stock: 139

Details

The Sigma Switches ON/OFF Switch in White, is designed specifically for RVs to provide reliable control and indication of electrical circuits. With its array of features and durable construction, this mini switch is the perfect addition to your RV's electrical system.

Featuring self-cleaning contacts and heavy-duty switching capabilities, this switch ensures long-lasting performance and dependable operation, even in demanding environments. The light, yet positive detent action provides tactile feedback, making it visually easy to operate and tease-proof.

With approvals from UL, CUL, CSA, and compliance with RoHS regulations, this mini ON/OFF switch meets industry standards for safety and environmental responsibility.

Mounting:

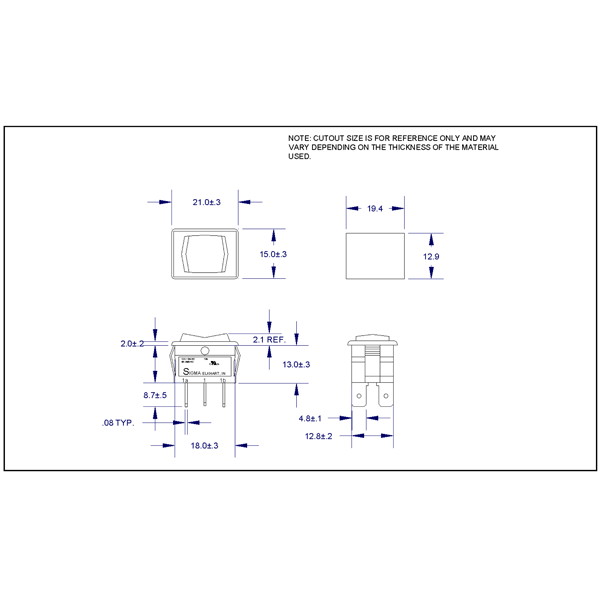

  • No hardware or tools needed. Self locks in to proper panel cutout 14.00mm(.550") x 28.6mm(1.25")
  • Acceptable panel thickness range is from .64mm (.025") to 4.57mm (.180").
  • Standard termination is solderless .187" (4.75 mm) wide x .032" (.81mm) thick.

Electrical Rating:

  • GP 10A - 125VCA
  • GP 10A - 250VAC
  • GP 6A - 277VCA
  • 1/2 HP - 250VAC
  • 10A - 14V Tung.
  • 20A - 14VDC Peak
