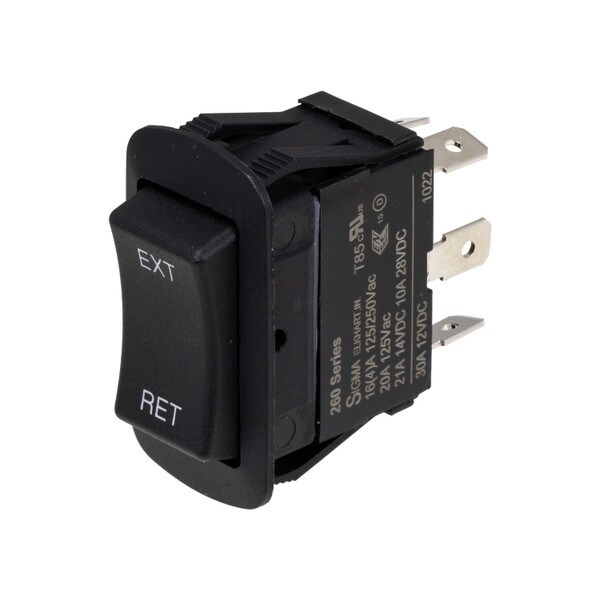

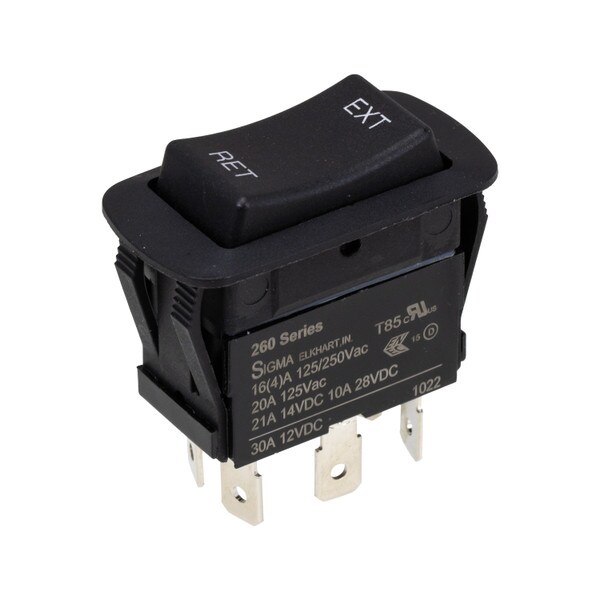

The Creative Products Group Replacement Switch DPDT in Black is designed to meet the demanding needs of your RV's slide room, awning, and leveling jack controls. This momentary on-off switch features a double pole double throw (DPDT) configuration, offering versatility and reliability for your electrical systems.

A Double Pole Double Throw (DPDT) switch is a switch that has 2 inputs and 4 outputs; each input has 2 corresponding outputs that it can connect to. Each of the terminals of a double pole double switch can either be in 1 of 2 positions.

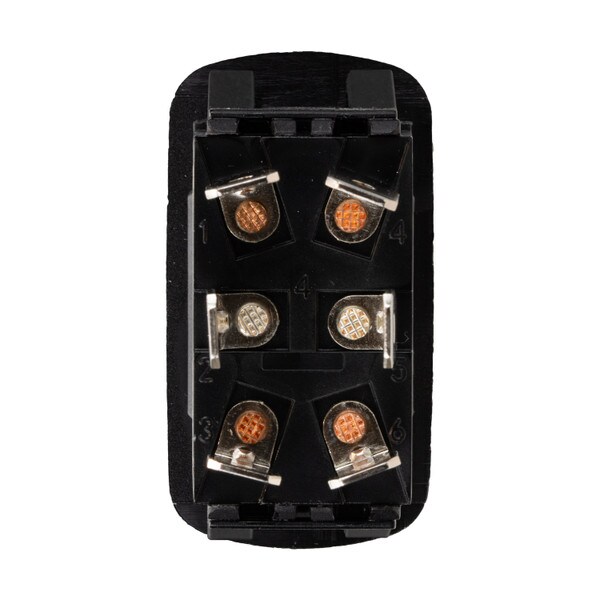

Featuring reverse polarity terminals and a dust-proof, waterproof design that meets or exceeds IP66 standards, this switch ensures durability and performance in outdoor environments. Whether you're extending your slide room, deploying your awning, or leveling your RV, this switch delivers crisp detent action and reliable operation every time.

With approvals from UL, CUL, and compliance with RoHS regulations, this DPDT switch meets industry standards for safety and environmental responsibility.

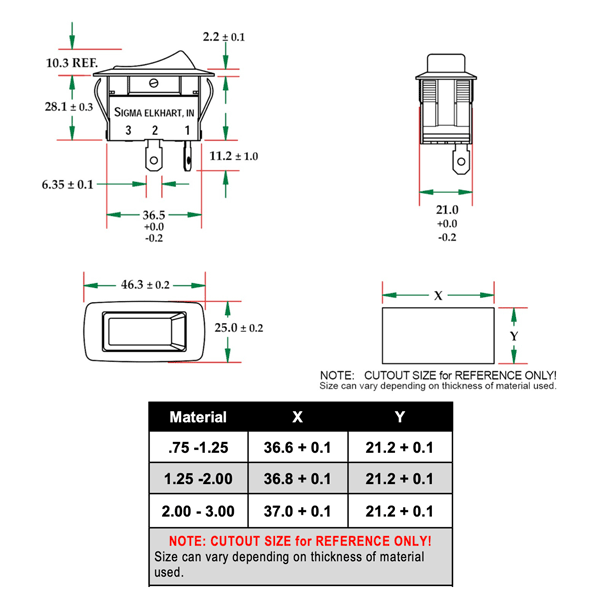

Mounting:

• No hardware or tools needed. Self locks in to proper panel cutout .21.2mm(.835") x 36.6 to 37.00mm(1.441 to 1.457")
• Acceptable panel thickness range is from .75mm (.030") to 3.00mm (.118")
• Standard termination is solderless 6.35mm (..250") wide x .81mm (.032") thick

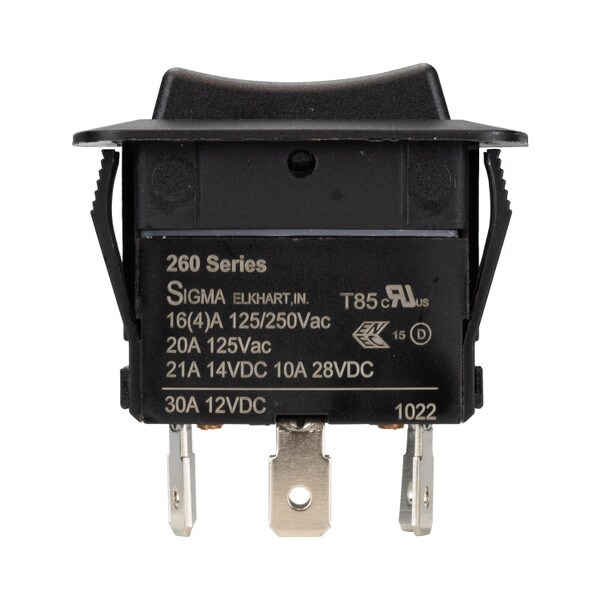

Electrical Rating:

• 20A - 125VAC
• 10A - 250VAC
• 12A - 125V 3/4 H.P.
• 10A - 277V 3/4 H.P.
• 21A - 14V DC
