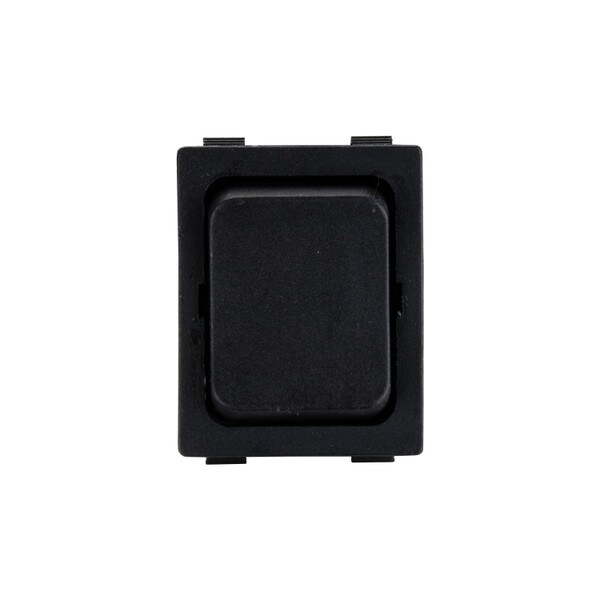

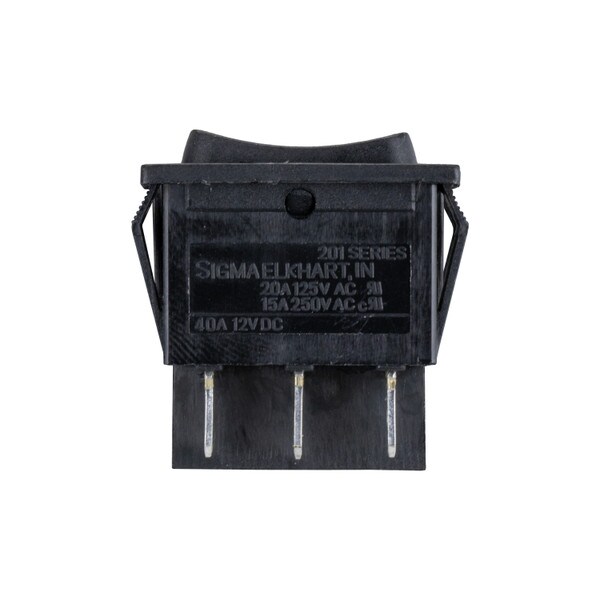

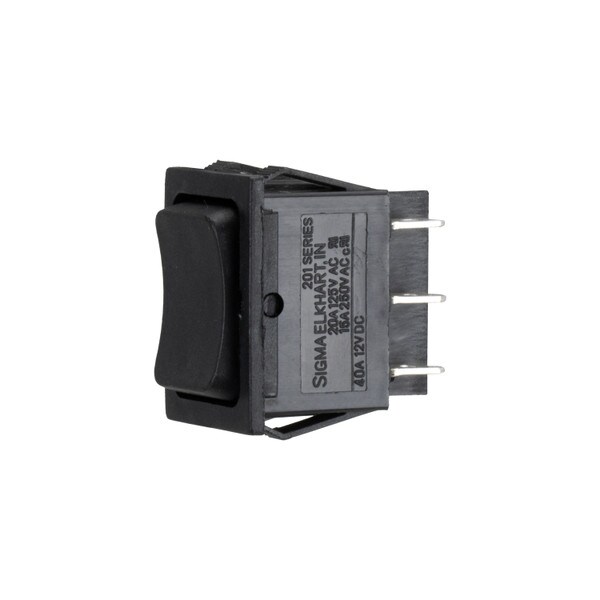

Sigma Switches 201D-27 12V 3-Way Rocker Switch ON/OFF/ON, Black

The Sigma Switches 201D-27 12V 3-Way Rocker Switch is a reliable and versatile switch designed for various electrical applications. With its high current ratings and compliance with multiple standards, this rocker switch ensures dependable performance and safety.

Key Features:

• Type: SPDT (Single Pole Double Throw) switch, providing flexibility in circuit design and application.
• Terminals: Standard solderless terminals measuring 0.25" wide x 0.32" thick, ensuring easy and secure connections.
• Current Ratings:
  • 20A at 125VAC
  • 15A at 250VAC
  • Factory-rated at 40A peak/20A continuous at 12VDC, accommodating a wide range of electrical needs.
• Compliance: UL, cUL, and RoHS compliant, ensuring adherence to safety and environmental standards.
• Cutout Dimensions: Requires a cutout of 0.886" x 1.181" (30mm x 22.5mm) for proper installation.
• Panel Thickness Range: Suitable for panel thicknesses ranging from 0.039" (1.0mm) to 0.118" (3.0mm), offering flexibility in mounting options.
• Outside Dimensions: Measures 31.2mm x 25mm, providing a compact and efficient size for various applications.
• Self-Locking Push Tabs: Features self-locking push tabs to securely hold the switch in place within the panel or plate, ensuring a stable installation.
