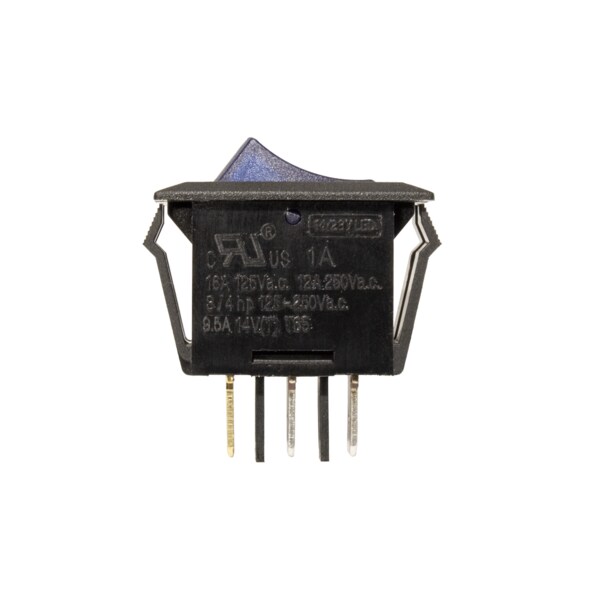

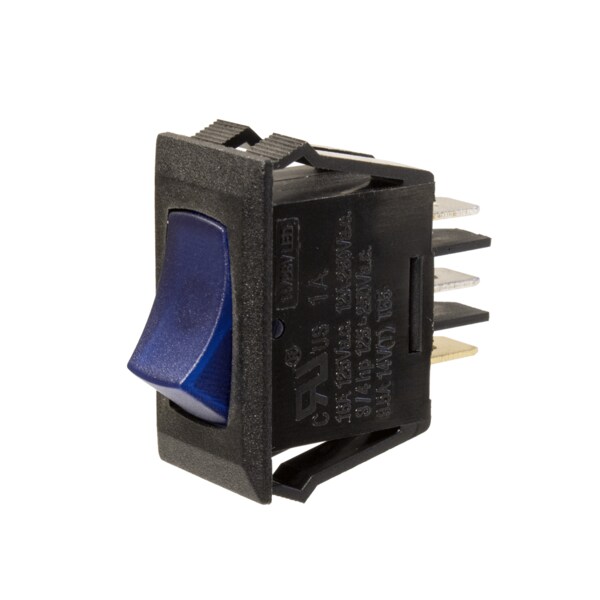

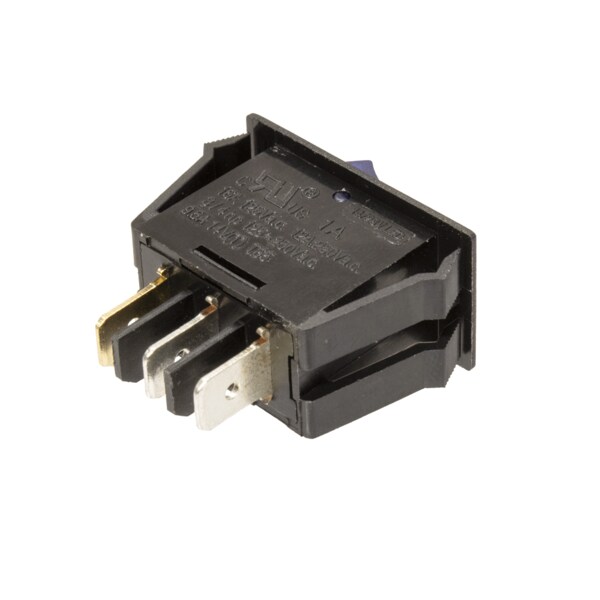

Black Rocker Switch - Blue Light
Details
Features
Termination
Electrical Rating
Approvals
- Self Cleaning Contacts
- Heavy-duty switching
- Light, yet positive detent action visually tease proof
- Easy self-locking panel mount, no hardware required
- Fully enclosed active switching elements
- Bright neon, LED bulb clearly indicates ON position
- No hardware or tools needed. Self locks in to proper panel cutout 14.00mm (.550") x 28.6mm(1.25")
- Acceptable panel thickness range is from .64mm(.025") to 4.57mm (.180")
Termination
- Standard is solder less 6.35mm (0.250") wide x .81mm (0.032")
Electrical Rating
- 16A - 125VAC
- 12A - 250VAC
- 3/4 HP - 125-250VAC
- 9.5A - 14VDC Peak
Approvals
- UL, CUL, RoHS compliant
