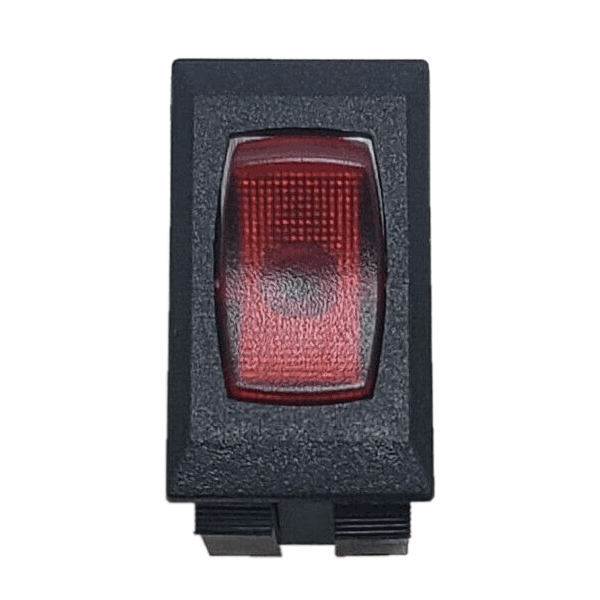

Sigma Switches Rocker Switch with Red Light, Black
Details
The Sigma Switches Creative Products Group Black Rocker Switch with Red Light is a reliable and durable switch designed to meet your RV’s electrical needs with ease. Featuring self-cleaning contacts, heavy-duty switching, and a light yet positive detent action, this switch ensures reliable performance and peace of mind.
Light, positive detent action visually indicates switch position for added convenience, featuring a Bright neon LED bulb that clearly indicates the ON position for easy visibility.
UL, CUL, RoHS compliant, guaranteeing adherence to safety and quality standards. Self-cleaning contacts ensure optimal performance and longevity. Heavy-duty switching mechanism for durability and reliability. Fully enclosed active switching elements provide enhanced safety and protection.

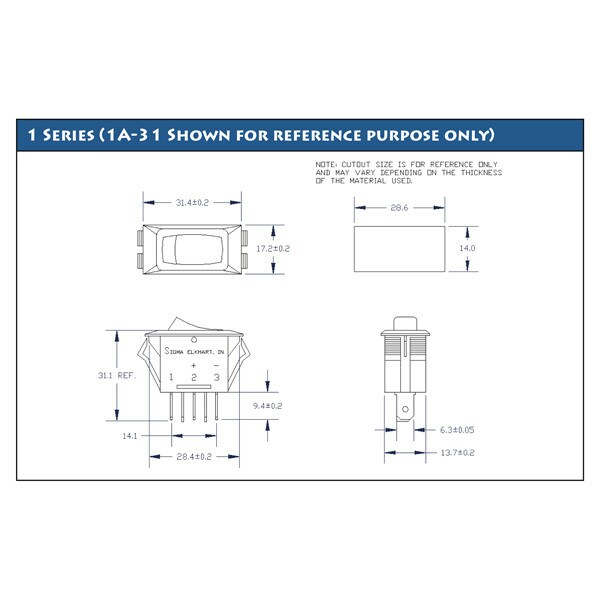

Mounting:
- Self-locks into a proper panel cutout of 14.00mm (.550") x 28.6mm (1.25").
- Acceptable panel thickness range is from .64mm (.025") to 4.57mm (.180").

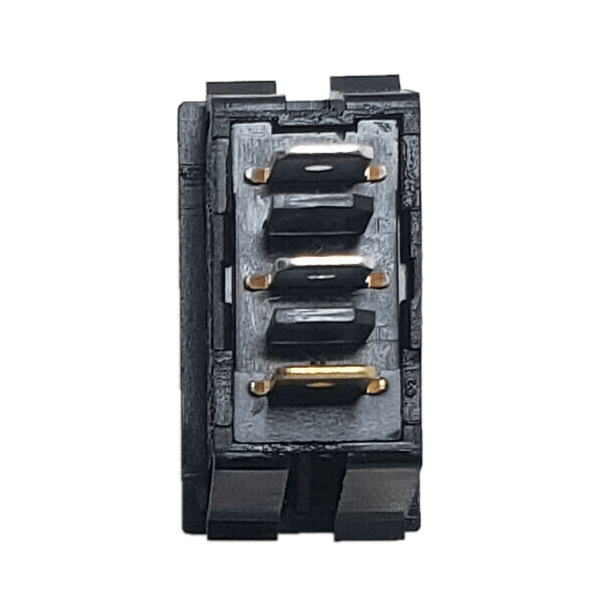

- Standard solderless terminals measure 6.35mm (0.250") wide x .81mm (0.032") thick, ensuring secure connections.

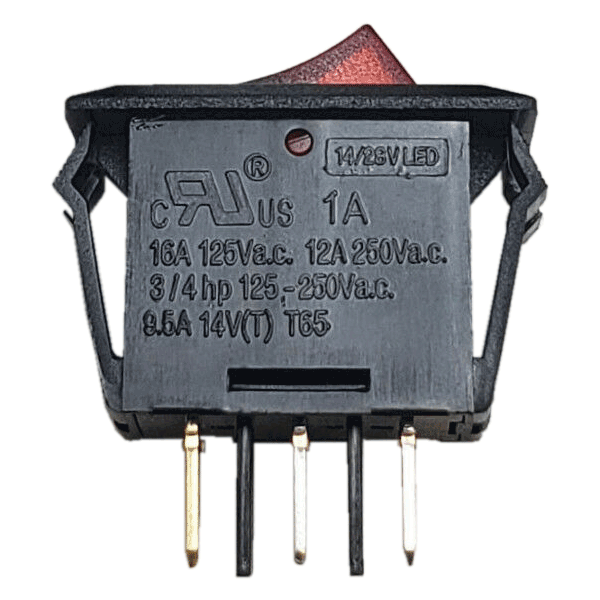

Electrical Rating:
- 16A - 125VAC
- 12A - 250VAC
- 3/4 HP - 125-250VAC
- 9.5A - 14VDC Peak
