Motor Coach, Entry Door, Rotary Style Lock, Direct Link (3500 Series Doors), Black Powder Coat

(0) No Reviews yet
$154.24
SKU: MRL-41510-2006-1PK

This item is available for ordering - Expect manufacturers lead time.

Details

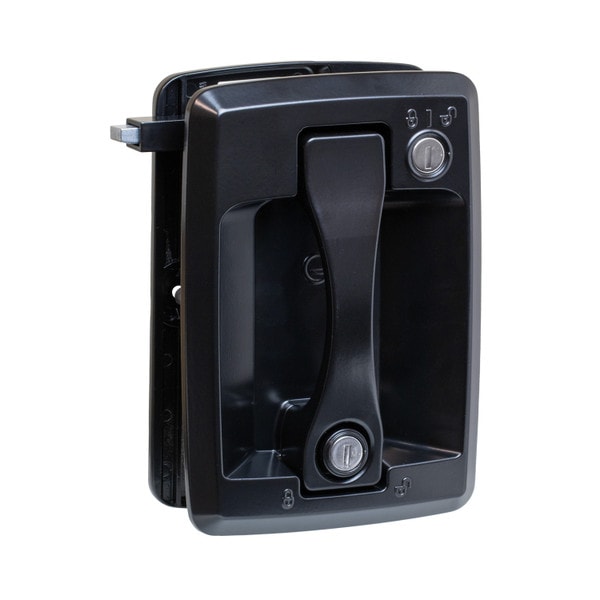

The Motor Coach Rotary Style Lock with Direct Link, engineered for enhanced security and durability, specifically designed for 3500 Series Doors. FMVSS approved and SAE J839 compliant, this lock features a direct rotary module with a standard deadbolt and is finished with super durable standard black powder coat finish.

Measuring at an outside diameter of 7.80" tall x 5.52" wide x 1.5" depth, this lock requires a door cut-out of 6.90" tall x 4.60" wide for installation. The lock can be keyed to any Global G3XX key code, offering versatility and compatibility with various key systems.

Please note:

  • Installation must be carried out by a certified technician.
  • The rotary module, strike pin, and door edge plate are not included with this lock.
  • For connection to the rotary module, a not adjusting rod is required.

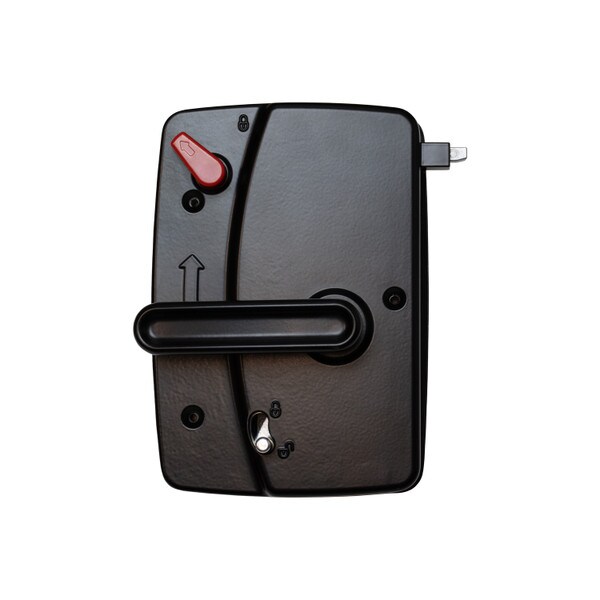

  • #10-32 X 1.O" Oval Head Screws used for inside plate attachment, Included in Retail Kit.
