Global Link Motor Coach, Entry Door, Rotary Style Lock, Remote Link (3500 Series Doors), Black
Details
The Global Link Motor Coach Rotary Style Lock with Remote Link, engineered for enhanced security and durability, specifically designed for 3500 Series Doors. FMVSS approved and SAE J839 compliant, this lock features a remote rotary module with a longer deadbolt for added security and is finished with super durable standard black powder coat finish.
Measuring at an outside diameter of 7.80" tall x 5.52" wide x 1.5" depth, this lock requires a door cut-out of 6.90" tall x 4.60" wide for installation. The lock can be keyed to any Global G3XX key code, offering versatility and compatibility with various key systems.
Please note:
- Installation must be carried out by a certified technician.
- The rotary module, strike pin, and door edge plate are not included with this lock.

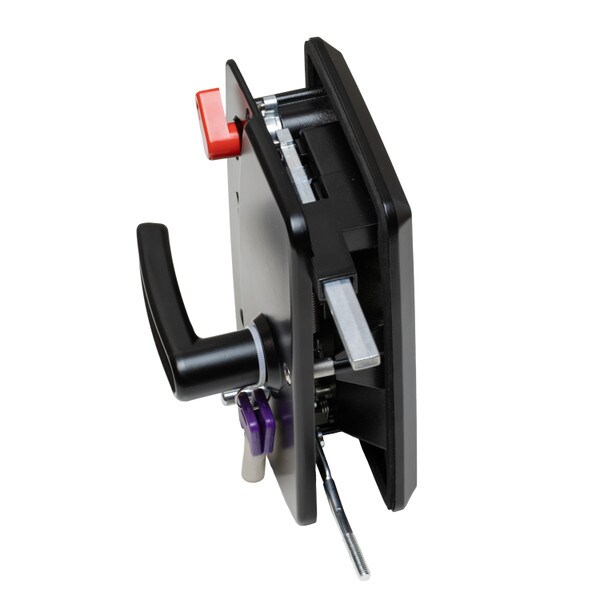

- For connection to the rotary module, an extension link rod is required.

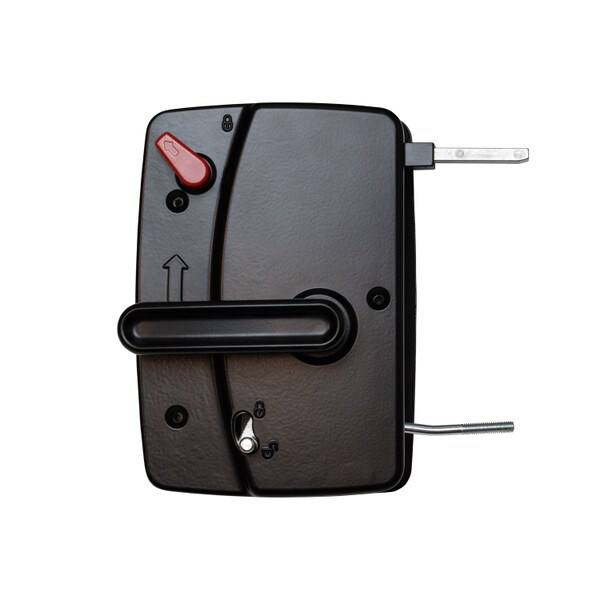

- #10-32 X 1.O" Oval Head Screws used for inside plate attachment, Included in Retail Kit.
